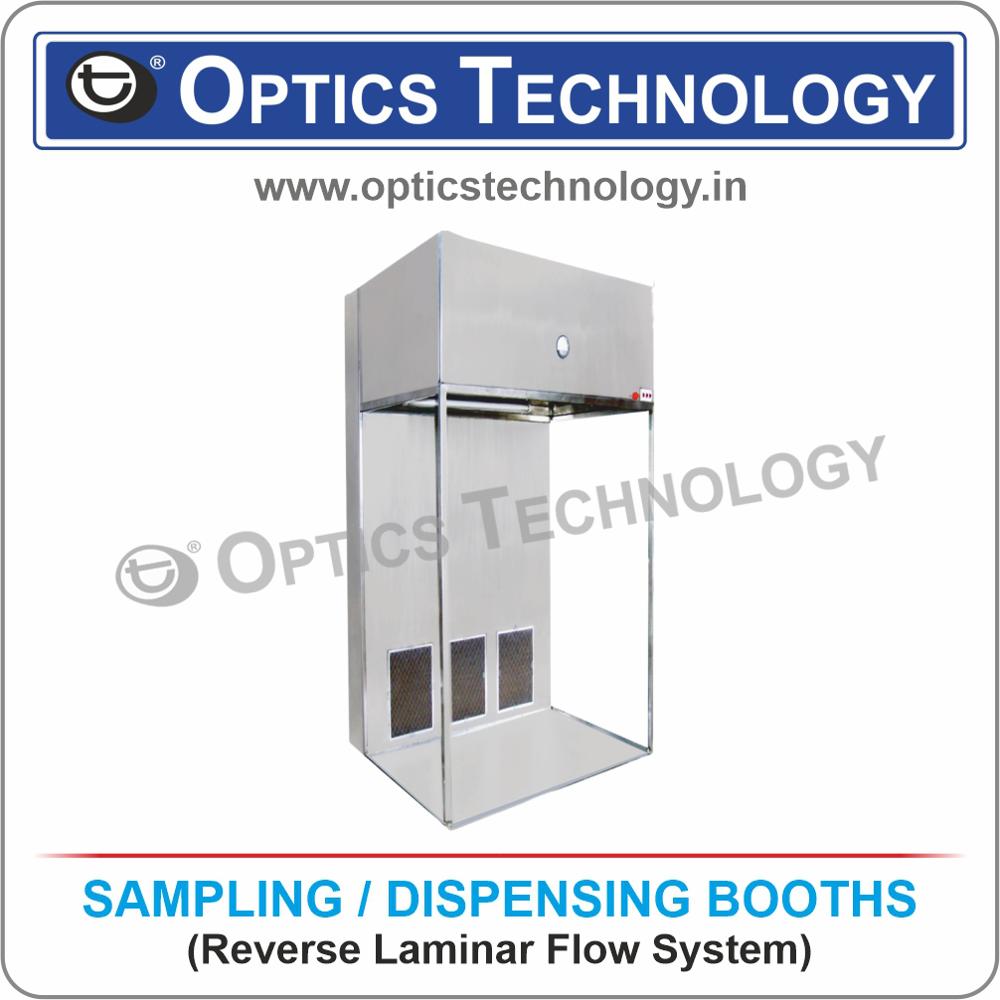

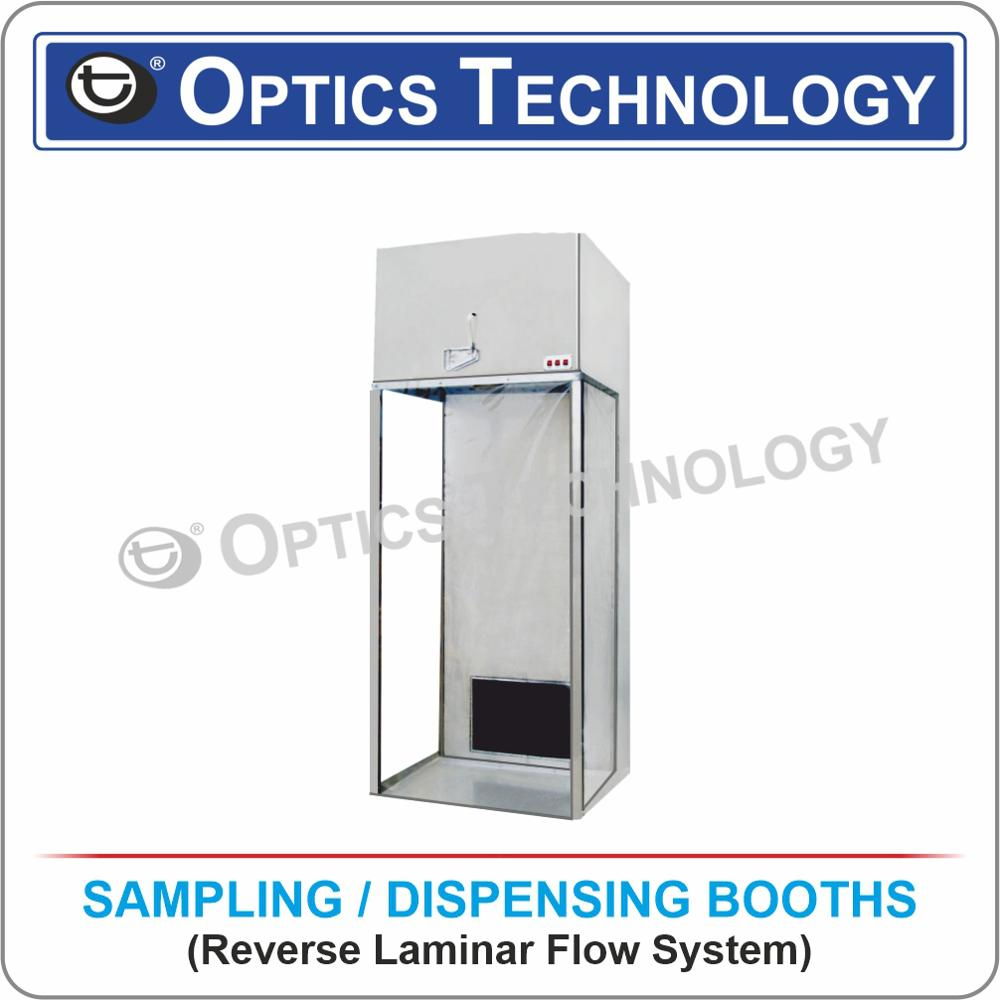

SAMPLING / DISPENSING BOOTHS(Reverse Laminar Air Flow System)

Get a Price/Quote

MOQ : 1 Piece

SAMPLING / DISPENSING BOOTHS(Reverse Laminar Air Flow System) Specification

Power Source
220V

Application
Food / Pharma / Dairy Industry

Feature
(1) M.S powder coated/ Stainless Steel 304 body (2) Hepa filter (0.3 Micron) (3) Fine filter (5 micron) (4) Pre-filter (10 micron) at Arrestance 90% (5) Motor blower assembly (6) U.V. Light (7) Fluorescent Lamp (8) Operating Switch (9) Static pressure manometer (10) Stainless Steel standing base (11) High quality HEPA filter provides protection for the products (filter efficiency of more than 99.97% at 0.3 micron). (12) Ultra-quiet noise level of not more than 65 dBA (13) Durable and easy to clean stainless Steel body (13) work area properly illuminated by Diffused Glare free Fluorescent light (14) PVC Flexible curtains on all the three sides

Material
MS duly powder Coated, Stainless Steel 304

Dimension (L*W*H)
2 x 2 x 6, 3 x 2 x 6, 3 x 3 x 6, 4 x 2 x 6, 4 x 3 x 6, 6 x 4 x 6, 6 x 6 x 6, 8 x 4 x 6, 8 x 6 x 6, 8 x 8 x 6 Foot (ft)

Model No
OT-SB-215

Color
MS , SS

SAMPLING / DISPENSING BOOTHS(Reverse Laminar Air Flow System) Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About SAMPLING / DISPENSING BOOTHS(Reverse Laminar Air Flow System)

(Reverse Laminar Air Flow System)

These are overhead clean air modules mounted with Stainless steel frame on the ground. Units can be built with / without casters so the clean enclosure can be moved over equipment or used to isolate a controlled process. It is basically used forfilling, refilling weighing and sampling / Dispensing of Raw Material, Basic Compounds, Active Compounds.It works on the principal of Laminar Air Flow with HEPA Filters & Pre-Filters.

This will act as a CLASS 100 Room. Protection of the personnel in the cabinet from the processed substances by vertical flow with Reverse Flow of clean air protection of the raw and intermediate products to be processed. Protection of the room where the cabinet is built up and environment from highly active substance which otherwise would disperse in the room and escape in the atmosphere unfiltered. Safe collection and deposition of substance released during work.
